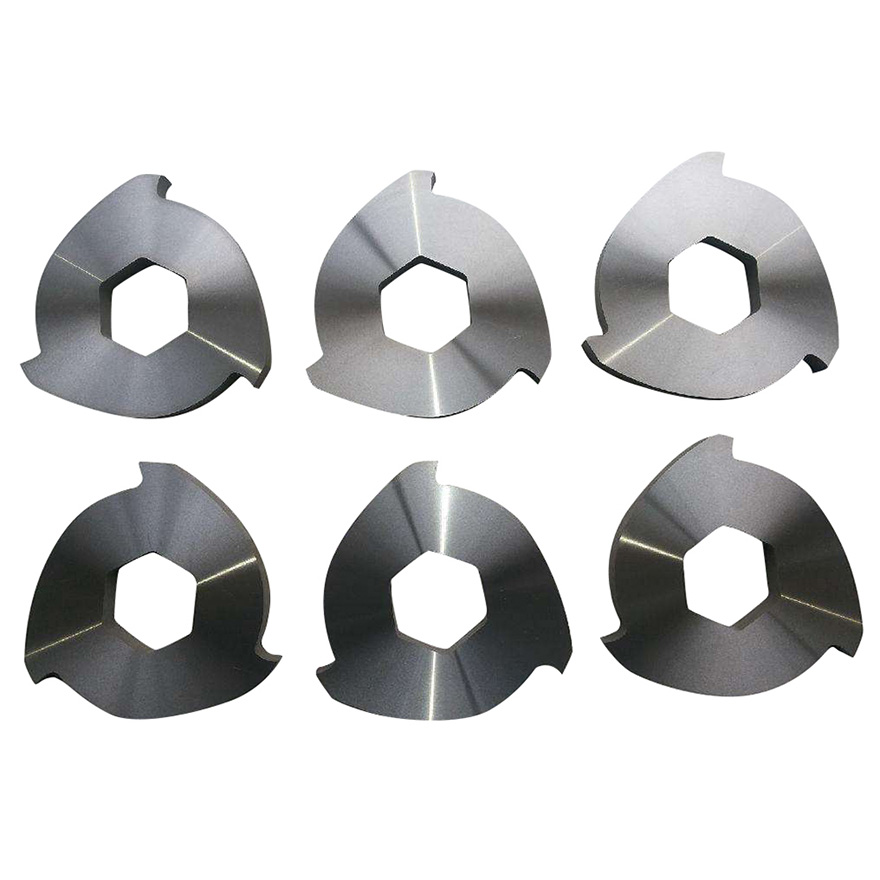

Heavy-Duty 3-Claw Rotary Shear Blades for Tire Recycling
Tire Shredder Blades
Premium 3-claw rotary shear blades engineered for primary tire shredding and TDF (Tire Derived Fuel) production. Manufactured from OEM-grade Cru-Wear (PGK) and Modified A8 tool steels to withstand extreme impact from bead wires. Precision machined to exact ±0.05mm (0.002") tolerances to ensure tires are cleanly cut rather than torn.
- ■Material: Cru-Wear (PGK), Modified A8, 42CrMo
- ■Application: Whole Tires, TDF Chips, OTR Tires
■ ISO 9001:2015 Certified
■ In-House Heat Treatment
■ Strict Dimensional Tolerances
■ Global Door-to-Door Delivery
[ Engineering Reference ]
Decisive Specifications
| Material | Cru-Wear (PGK), Modified A8, 42CrMo |
|---|---|
| Machining Tol. | Strictly ±0.05 mm (0.002 inches) |

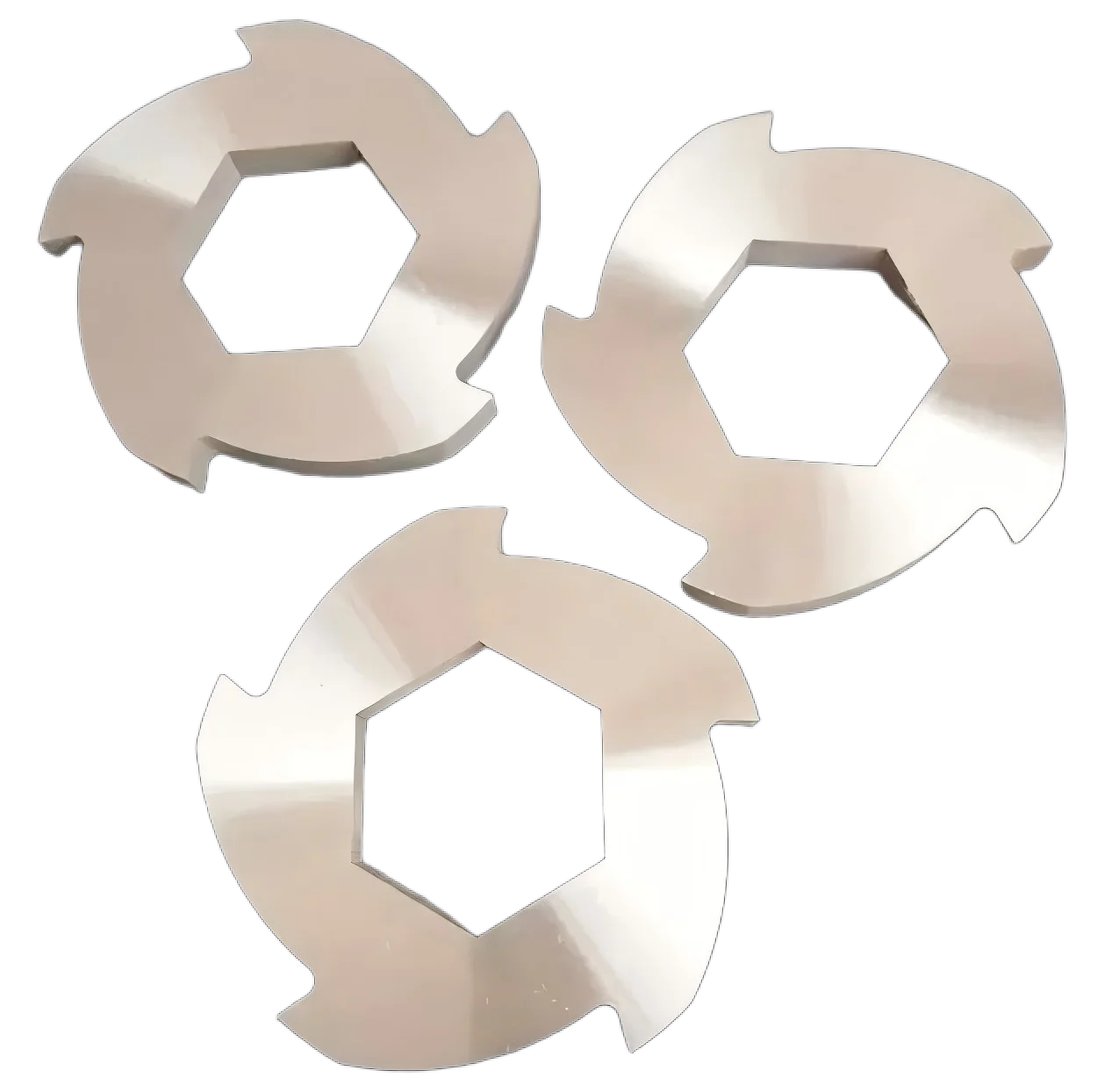

| Standard Geometry | 3-Claw Rotary (Custom hook counts available) |
| Hardness | HRC 54–58 (Optimized for Wire Impact) |
| Application | Whole Tires, TDF Chips, OTR Tires |
| OEM Fitment | Barclay, CM, SSI, Untha, Granutech-Saturn |
■ All values verified via CMM inspection · ISO 9001:2015
[ RFQ Prompt ]
Need a Specific Size or OEM Replacement?
Don't see your exact specs? Send us a blueprint, a worn sample, or just your machine model. Our team will review the details and provide a tailored quotation.
[ Standard Reference ]
Common Standard Dimensions
| OEM Platform | Outer Diameter | Thickness (Chip Size) | Bore (Inner Hole) | Claw Count |
|---|---|---|---|---|
| Barclay Standard | Φ 450 mm (17.7") | 50.8 mm (2.0") | Hex / Splined | 3 Claws |
| CM Primary | Φ 500 mm (19.6") | 50.8 mm (2.0") | Heavy Splined | 3 Claws |
| SSI / Untha | Φ 400–600 mm | 25–75 mm | Hex / Octagon | 1 / 3 / 5 Claws |
| OTR Shredder | Φ 800+ mm | 100+ mm | Heavy Keyed | 1 / 3 Claws |
[ Technical Audit ]
Engineering Advantages
Cru-Wear (PGK) & Modified A8
Utilizing OEM-grade premium alloys. Cru-Wear provides ultimate toughness and durability for high-volume lines, while Modified A8 offers the best balance of cost and performance.
Cut, Don't Tear
Precision ground to ±0.05mm. This ensures a true scissor-like cutting action, preventing wire pull-out, reducing machine wear, and drastically lowering energy consumption.
Consistent TDF Chips
Exact blade thicknesses (e.g., 2-inch standard) combined with zero-clearance shearing produce uniform, high-quality Tire Derived Fuel (TDF) chips with minimal exposed wire.
[ System Inventory ]
Related Blade Categories
View All →
[ Knowledge Base ]
Product FAQs & Buying Guidance
Technical FAQs
01Why should I upgrade to Cru-Wear (PGK) from standard D2 tool steel?+−
Tires contain high-tensile bead wires that act as extreme impact loads. Standard D2 is highly wear-resistant but brittle; the edge will chip when it strikes bead wire. Cru-Wear (PGK) is engineered with a different carbide structure, making it significantly tougher and more durable than D2, absorbing the impact without fracturing while maintaining excellent edge retention.
02How does blade tolerance affect my shredder's energy consumption?+−
If the thickness tolerance of the rotary blades varies by more than 0.05mm (0.002"), a gap forms between the counter-rotating knives. Instead of shearing the elastic tire, the machine tries to stretch and tear it. This pulling action requires massive amounts of torque, which spikes the motor's amp draw and wastes energy. Precision tolerances ensure a low-friction, clean cut.
03How does the 3-claw design benefit whole tire processing?+−
A 3-claw geometry provides the ideal bite angle and spacing. If there are too many claws (e.g., 8 or 10), the tire will bounce on top of the rotor because the hook gaps are too small to grab the thick rubber. 3 claws provide a massive opening that hooks into the tire cavity and pulls the entire tire down into the cutting chamber.
Why Choose Sureay
01Can you supply spacers and cleaning fingers (scraper plates) to match the blades?+−

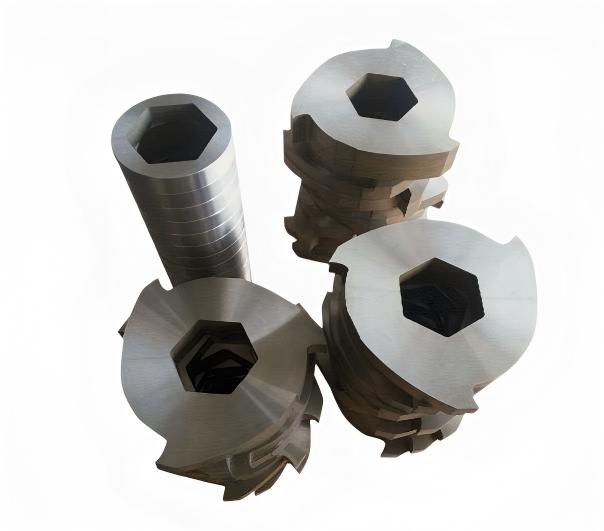

Yes. A complete tire shredding rotor requires matched blades, spacers, and cleaning fingers. We manufacture the complete set to the same strict tolerances to ensure zero-gap assembly across the entire length of the rotor shaft.
02Do you have the blueprints for Barclay or CM shredders?+−
We maintain a comprehensive database of OEM blade drawings for major tire shredding platforms. Supplying us with your machine model or a basic confirmation drawing allows us to manufacture exact drop-in replacements.
