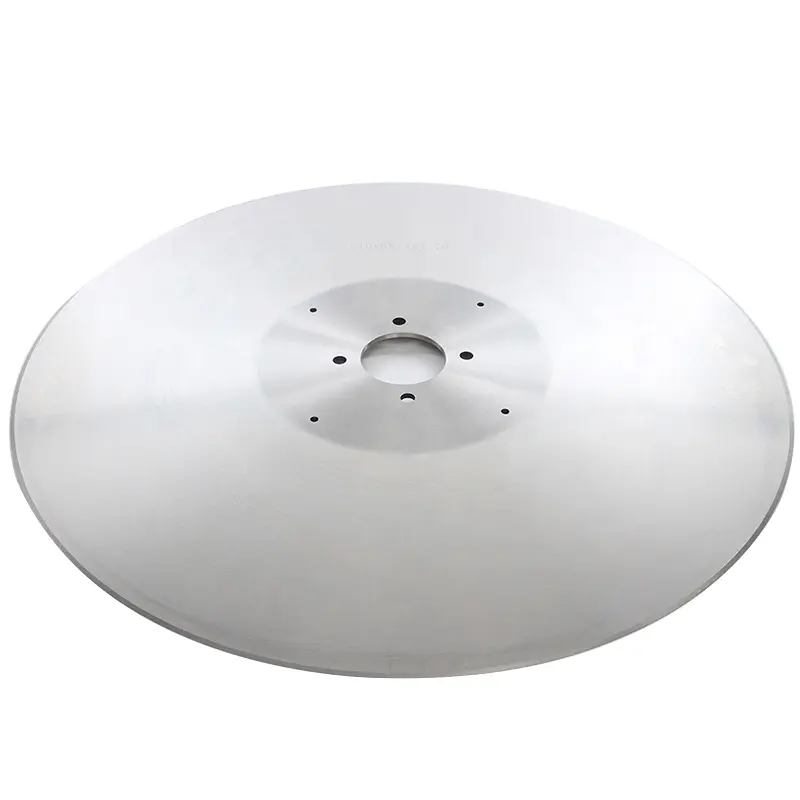

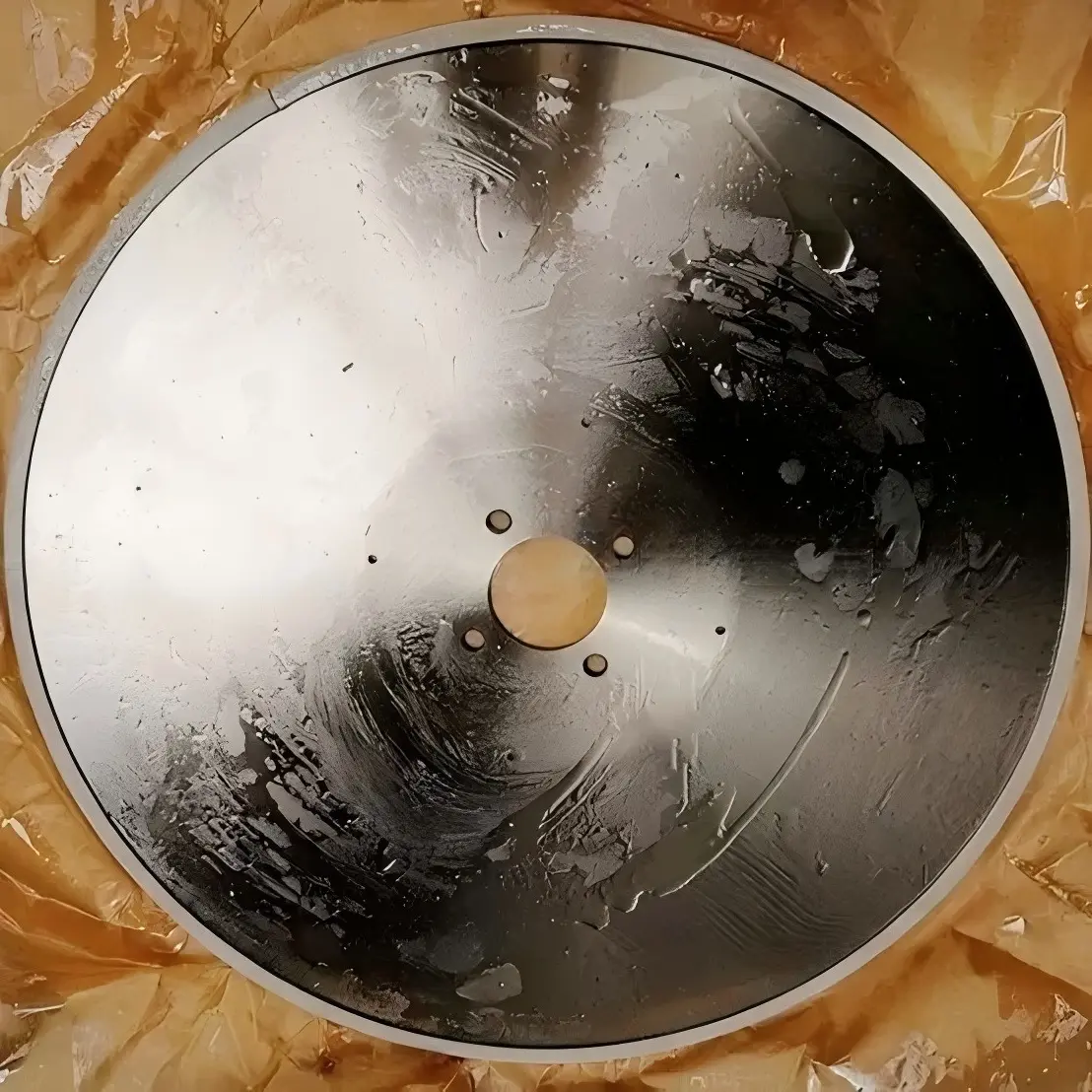

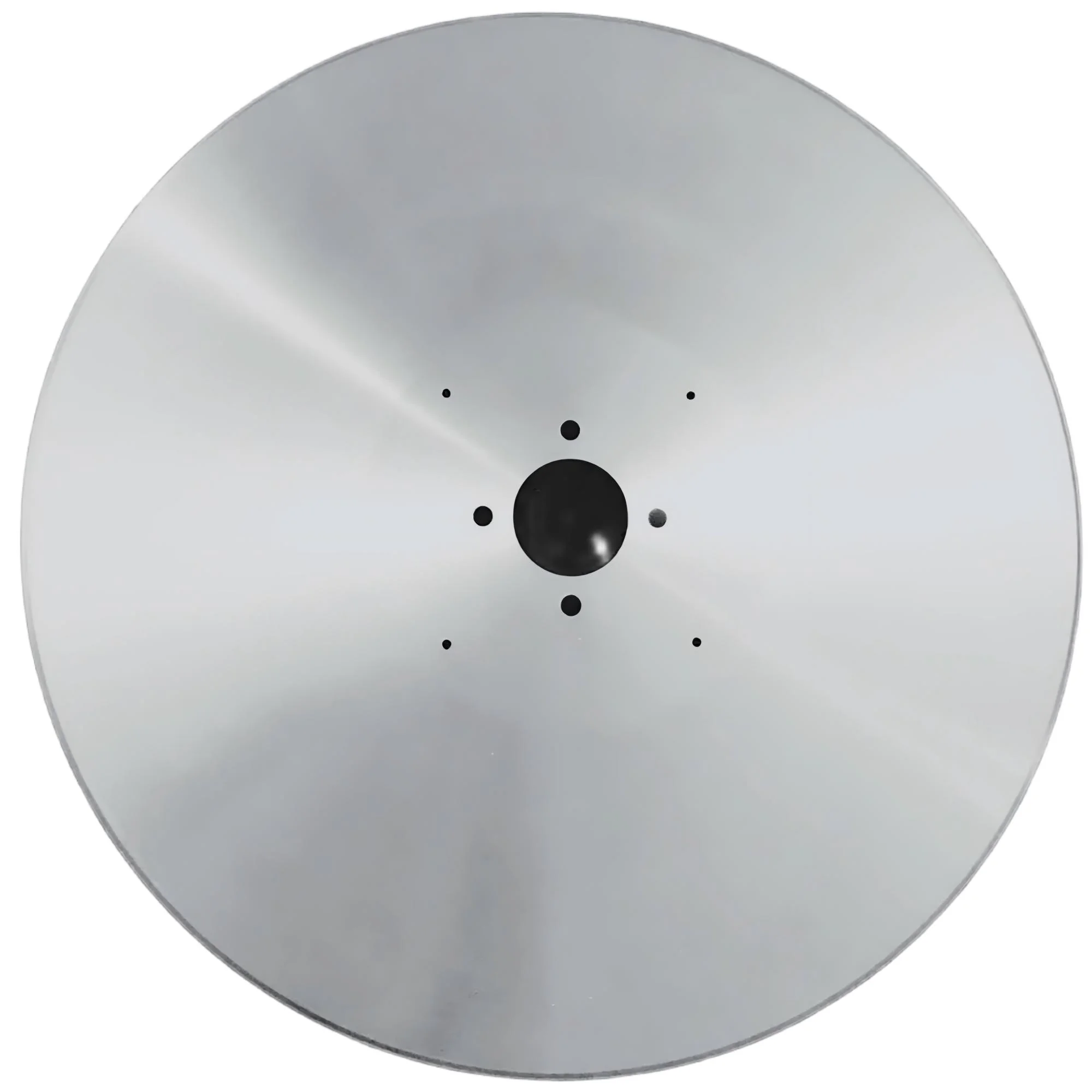

D2 Ø610 Log Saw Blade For Tissue Paper Cutting
Tissue Paper Blades
D2 and M2 HSS large-diameter circular log saw blades for high-speed tissue converting—precision-ground to lateral runout ≤0.15mm, edge runout ≤0.10mm, and parallelism 0.05mm for dust-free, fiber-crush-free cross-cutting of tissue, bath tissue, and paper-towel logs. Standard bore Ø68.26mm (+0.05mm) for Fabio Perini, Casmatic, and PCMC log saws; custom OD to Ø1200mm. Optional TiN or hard-chrome coating extends MTBR in high-humidity paper mills.
- ■Material: D2, M2, HSS
- ■Application: Log saw machines (Tissue/Paper)
■ ISO 9001:2015 Certified
■ In-House Heat Treatment
■ Strict Dimensional Tolerances
■ Global Door-to-Door Delivery
[ Engineering Reference ]
Decisive Specifications
| Material | D2, M2, HSS |
|---|---|
| Size (OD) | Max Ø 1200 mm |
| Lateral Run-out | Max 0.15 mm |
| Edge Run-out | Max 0.10 mm |
| Parallelism | 0.05 mm |
| Concentricity | 0.30 mm |
| Verticalness | 0.05 mm |
| Inner Hole Size (ID) | Ø 68.26 mm (+0.05 mm) |
| Application | Log saw machines (Tissue/Paper) |
■ All values verified via CMM inspection · ISO 9001:2015
[ RFQ Prompt ]
Need a Specific Size or OEM Replacement?
Don't see your exact specs? Send us a blueprint, a worn sample, or just your machine model. Our team will review the details and provide a tailored quotation.
[ Standard Reference ]
Common Standard Dimensions
| Outer Diameter (OD) | Inner Diameter (ID) | Thickness |
|---|---|---|
| Ø 610 mm | Ø 68.26 mm | 4.76 mm |
| Ø 610 mm | Ø 68.26 mm | 3.80 mm |
| Ø 610 mm | Ø 82.55 mm | 4.76 mm |
| Ø 610 mm | Ø 82.55 mm | 3.80 mm |
| Ø 680 mm | Ø 68.26 mm | 3.80 mm |
| Ø 870 mm | Ø 60.00 mm | 6.00 mm |
| Ø 1000 mm | Ø 60.00 mm | 6.00 mm |
[ Technical Audit ]
Engineering Advantages

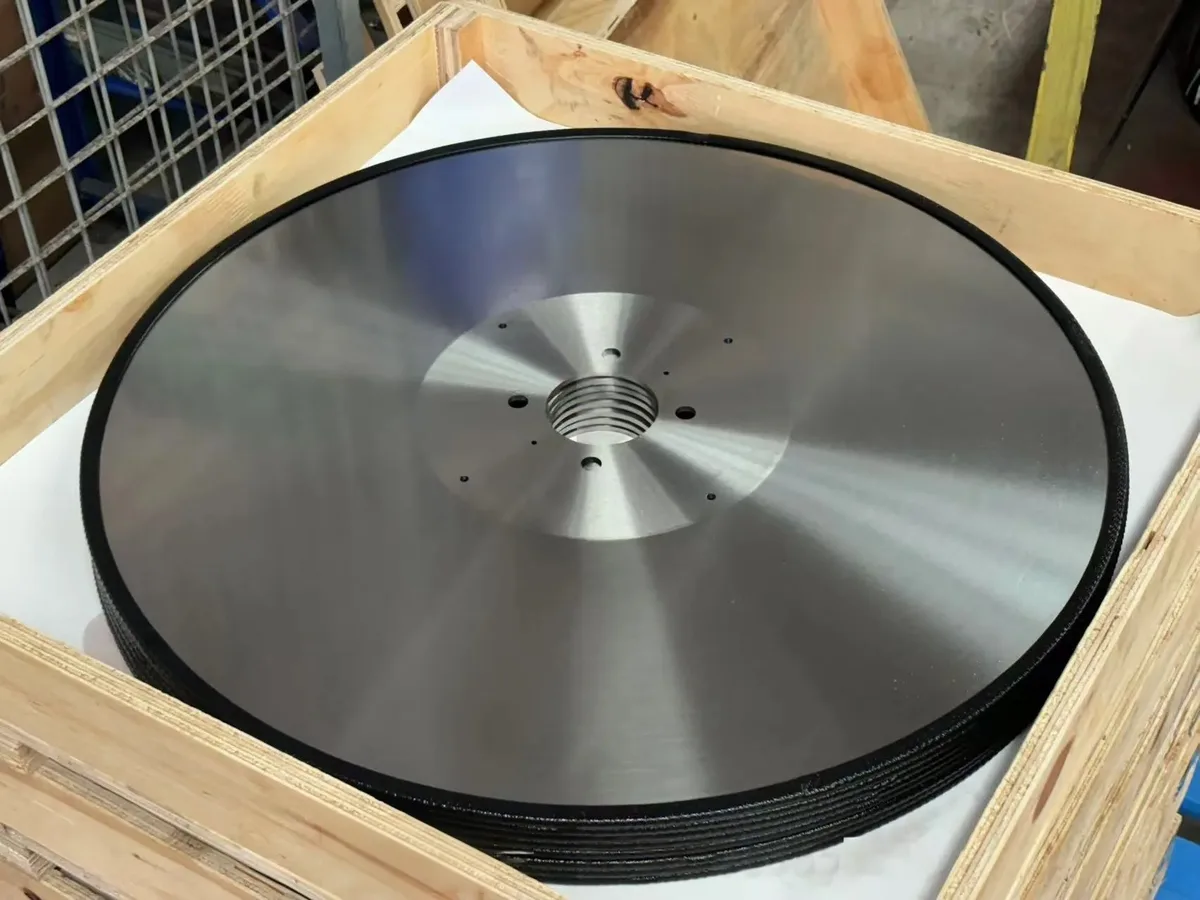

Mirror-Polish Grinding (Ra ≤ 0.4)
Reduces paper fiber adhesion and minimizes dust generation. Glides effortlessly through tissue webs without tearing.
Shallow Bevel Angle (15°–25°)
Minimizes cutting force to prevent fiber crushing. Delivers a clean, straight edge that meets premium brand standards.
Optional Chrome / TiN Coating
Provides corrosion resistance for high-humidity paper mills. Reduces surface friction to significantly extend blade service life.
[ System Inventory ]
Related Blade Categories
View All →
[ Knowledge Base ]
Product FAQs & Buying Guidance
Technical FAQs
01What runout tolerances matter most for a high-speed tissue log saw?+−
Lateral runout (≤0.15mm) and edge runout (≤0.10mm) are the two critical parameters. Lateral runout beyond 0.15mm causes the blade to oscillate sideways during the cut, generating fiber-crush, dust, and non-perpendicular cut faces. We verify both values on a calibrated CMM for every blade before dispatch, not just batch-sample inspections.
02How do I minimize dust and fiber tearing during tissue log cross-cutting?+−
Dust is generated when a dull or incorrectly bevelled blade tears tissue fibers instead of shearing them. We engineer a shallow bevel angle (15°–25°) matched to your tissue substrate, combined with a mirror-polished face (Ra ≤ 0.4μm) that prevents fiber adhesion. This combination delivers clean cuts and reduces dust below premium brand dust-specification limits.
03Can you supply blades for Fabio Perini, PCMC, or Casmatic log saws in custom diameters?+−
Yes. Standard bore Ø68.26mm (+0.05mm) fits Fabio Perini and PCMC Forte/Elite directly. Ø82.55mm bore covers Casmatic platforms. We also manufacture custom OD from Ø610mm to Ø1200mm to drawing within 10 working days, with dimensional sign-off available before production on first-order tooling.
04How many cuts can I expect between blade dressing cycles on a standard tissue converting line?+−
With D2 grade blades on 300-series 2-ply tissue (85 gsm), MTBR on a Fabio Perini RA line typically runs 15–22 million cuts per set before first resharpen. TiN-coated blades extend this to 25–30 million cuts. High recycled-content tissue, ambient humidity above 80% RH, and feed speeds above 800mm/min all reduce the interval between dressing cycles.
05Can you supply tissue log saw blades with keyway slots or non-standard bore sizes for retrofit spindles?+−

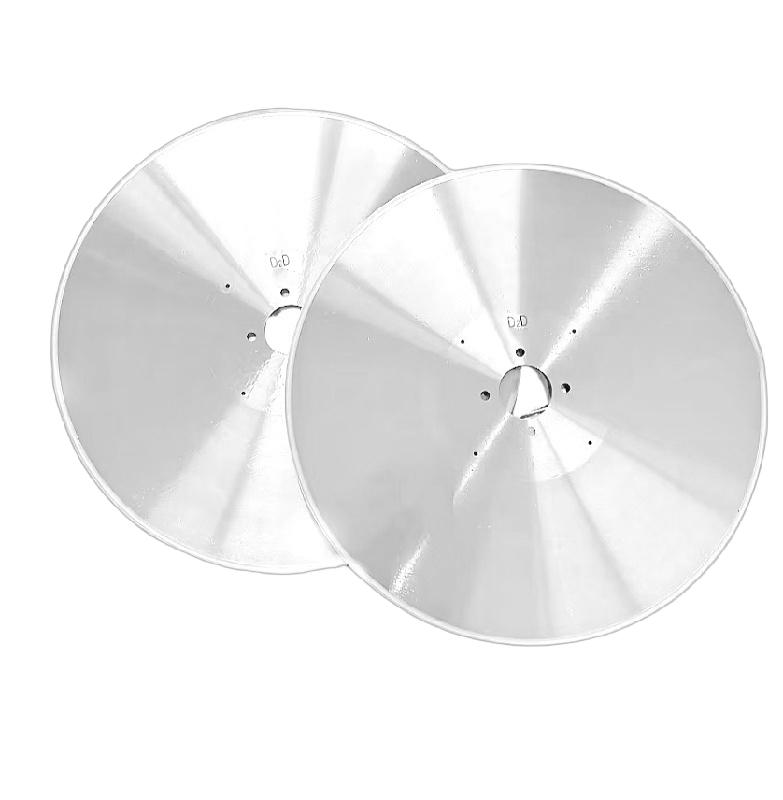

Yes. We manufacture to custom bore tolerance and add keyway slots, drive pin holes, or non-standard bore diameters for retrofit log saw spindle configurations. A dimensional drawing review confirms spindle interface dimensions before any production commitment on first-order custom tooling.
Why Choose Sureay
01Are you a trading company or a direct manufacturer?+−
We are a 100% direct OEM manufacturer established in 2008. When you buy from Sureay, you bypass middleman markups and communicate directly with the engineers who forge and grind your blades.
02What makes Sureay's heat treatment different from cheaper alternatives?+−
Unlike standard quenching, every Sureay blade undergoes deep cryogenic treatment after vacuum hardening. This transforms retained austenite into martensite, boosting wear resistance by up to 40% and ensuring uniform hardness across the entire cutting edge.
03Do you ship globally and how long does it take?+−
Yes, we export to over 50 countries. Standard OEM replacement blades typically ship within 48 hours. Custom profiles take 10–15 working days. We partner directly with DHL, FedEx, and international sea freight forwarders for reliable door-to-door delivery.
04What quality certifications does Sureay hold, and can you provide material test reports?+−
Sureay is ISO 9001:2015 certified. Every shipment includes a Rockwell HRC hardness test report, a dimensional inspection record, and a heat treatment batch certificate. For OEM qualification, full CMM dimensional reports and steel mill certificates are available on request.
05Can we trial a sample set before committing to a full production order?+−
Yes. We offer sample sets (typically 2–5 blades) for machine fit verification and edge life testing. Standard sample lead time is 5–7 working days. For custom profiles, dimensional sign-off samples are produced before full production commences — no tooling commitment until fit is confirmed.
