Concrete Mixing Plant Parts: What to Read Off a Casting Before You Reorder

A purchase order arrives with one line on it: mixing arm, eight pieces. The plant is a twin-shaft, there are eight arm positions on the shafts, so eight arms. Reasonable. It is also unquotable, because those eight positions are rarely eight of the same casting — and the one mark that would have settled it was cast into the back of the part that went into the scrap skip last Friday.

Concrete mixing plant parts carry more identification than most buyers use. The numbers, the pads and the shape of the bolt holes each answer a different question, and reading them before the old part leaves the plant turns a two-round quote into a one-round quote.

The Long Cast Number Is the Part. The Boxed Mark Is Not.

On a cast mixer wear part, the long raised number — 11336330, 11336331, 11336332 — is the pattern identifier, and it is the only mark that uniquely specifies that casting. The small boxed two-letter mark sitting next to it is a casting mark. It does not identify the part.

Buyers quote the boxed mark constantly, because it is short and looks like a code. It gets you nowhere: the same mark appears on every part that came off that line, in every size. The long number is what the pattern shop, the foundry and the machining fixture are all indexed to.

Consecutive numbers matter too. A block like 11336330 / 11336331 / 11336332 is almost always one tool family: different positions in the same machine, not three sizes of the same part. That is exactly why an order line reading "eight arms" cannot be filled. The eight positions may draw on three or four different pattern numbers, in quantities that are not equal.

Then there is the position number — a single digit cast into its own recessed square pad, telling you which slot in the drum that casting belongs to. If the pad on your worn part is blank or unreadable, check the drum wall. Plants often paint or stamp positions during assembly.

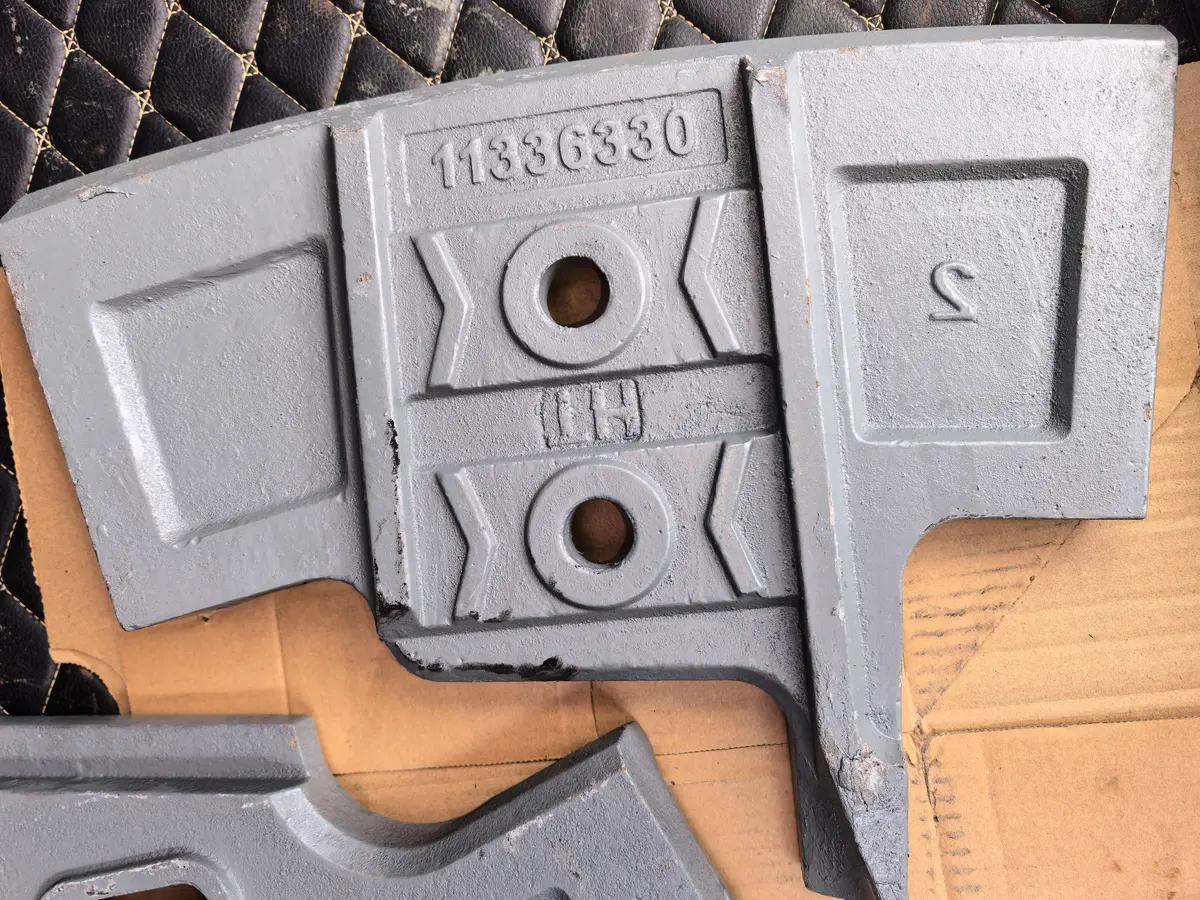

Fig. 1Concrete Mixing Plant Parts Cast Pattern Number

Slotted Bolt Holes and Round Bolt Bosses Are Not the Same Fitment

A slotted hole exists so the part can be moved. A round hole on a machined boss exists so it cannot. That is the whole distinction, and it decides whether a replacement drops in or fights you.

Mixing blades and scrapers run at a set clearance to the liner. As the working edge wears, that gap opens and the part stops sweeping material off the wall. Slotted mounting holes let a maintenance crew pull the casting back toward the liner and recover the original clearance without replacing anything, several times over the life of the part. Round holes on raised bosses do the opposite job: they index the casting to one repeatable position so blade spacing along the shaft does not drift batch after batch.

So if the worn part you pulled has slots and the replacement quoted to you has round holes, that is not a small difference in fit. It is a different position in the machine, or a different generation of the machine.

There is a useful signal hiding in the slot as well. Pull the part and look at which end of the slot has gone oval. An oval slot end means the crew has been taking up wear with adjustment and has run out of travel, so the part is finished regardless of how much material is left on it. Order on that, not on the calendar.

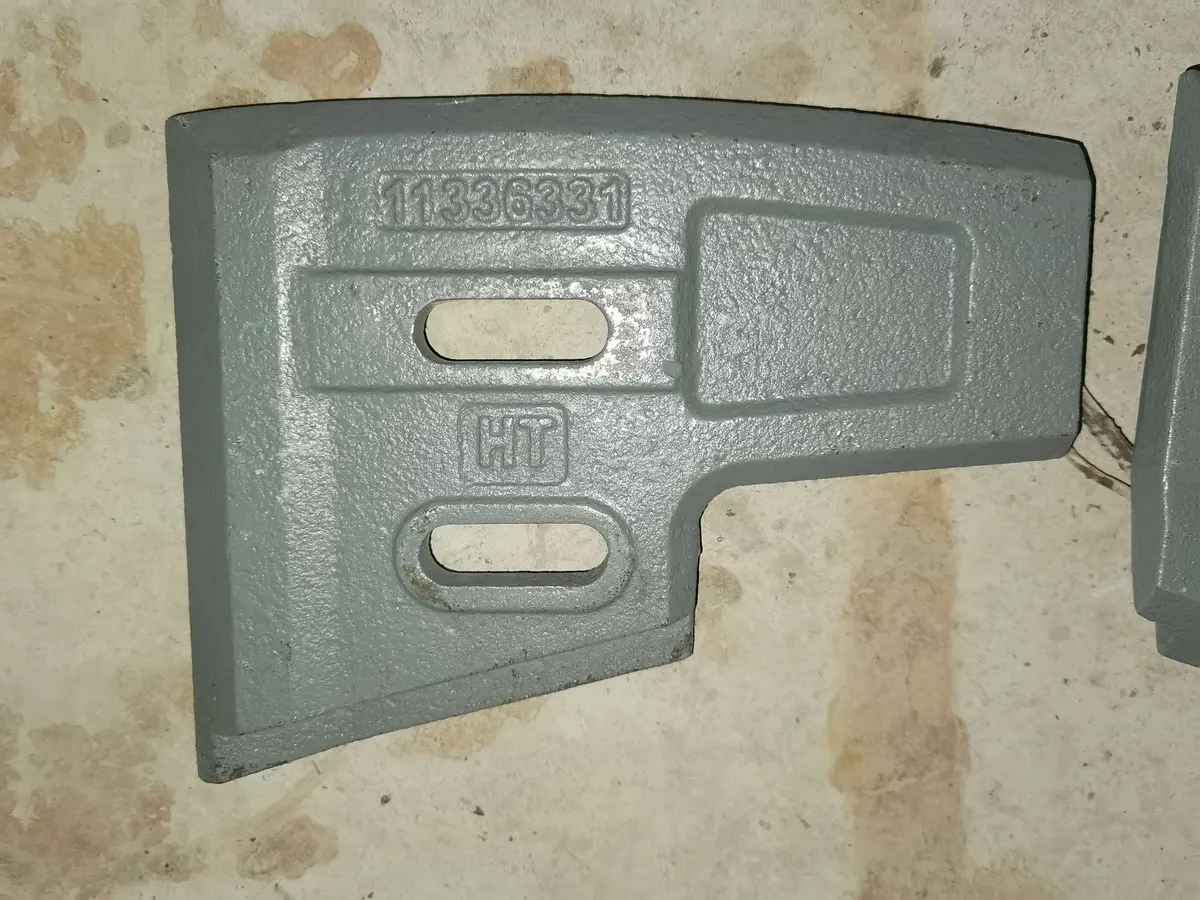

Fig. 2Concrete Mixing Plant Parts Slotted Bolt Holes

Our concrete scraper blades and bolt-on mixer blades are cast in high-chromium and Ni-Hard iron at HB 600-700 and machined to the original mounting geometry, slots included. The adjustment travel is part of the specification, not something to be ground in on site.

Why Liner Plates Are a Set Problem, Not a Piece Problem

Replacing a single liner plate in a worn row does not just wear that plate out faster. It creates a lip that tears the row loose.

Each plate seats on a central bolt, flush against the drum wall and flush against its neighbours. Drop a full-thickness plate into a row that has already lost several millimetres and it stands proud by exactly that amount. Aggregate catches the raised edge on every revolution, the bolt takes shock loading it was never designed for, and a plate rated for 6-18 months can work loose in weeks.

That is why concrete liner plates ship by the pallet rather than the piece. Cast in Ni-Hard or high-chromium iron at HB 600-700, they are the cheapest component in the drum and the most expensive one to get wrong, because the failure takes the drum wall with it.

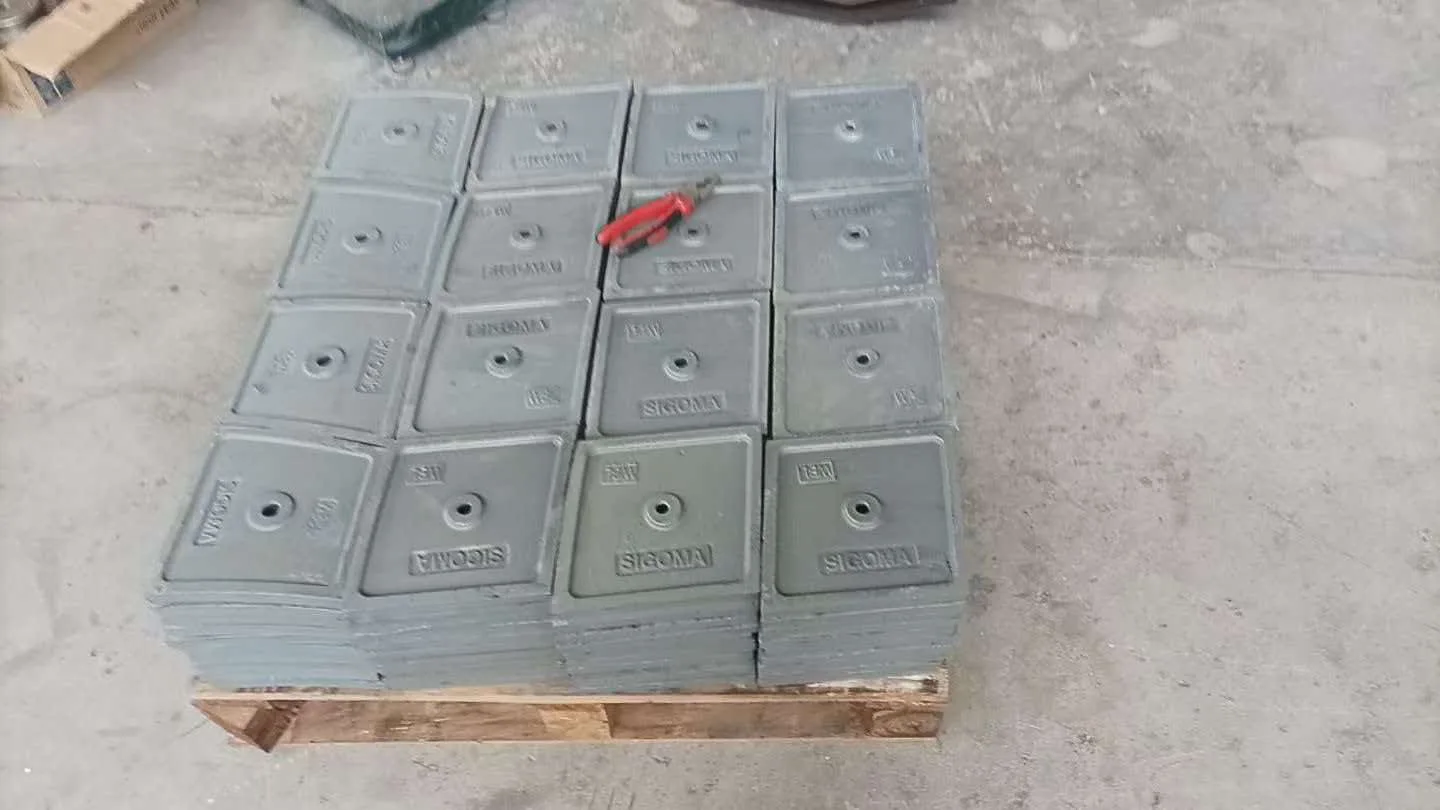

Fig. 3Concrete Mixing Plant Parts Liner Plates Pallet

The Arm and the Parts Bolted to It Never Wear Out Together

Arms and wear faces are cast in different materials for different failure modes, so they reach their limits at different times. Plan around that rather than against it.

Service life depends on output, aggregate hardness and duty cycle — verify against your OEM service interval.

The mixing arm does not fail from abrasion. It fails from fatigue: hub cracking and bolt-boss elongation under the reversing torque of a full batch. Which gives you a rule worth applying at every blade change. Before you bolt new blades onto an old arm, check the bosses. An elongated boss will not hold the new casting in position, so a perfectly good blade runs at the wrong clearance from its first batch, and you will be back inside the drum long before the wear chart says you should be.

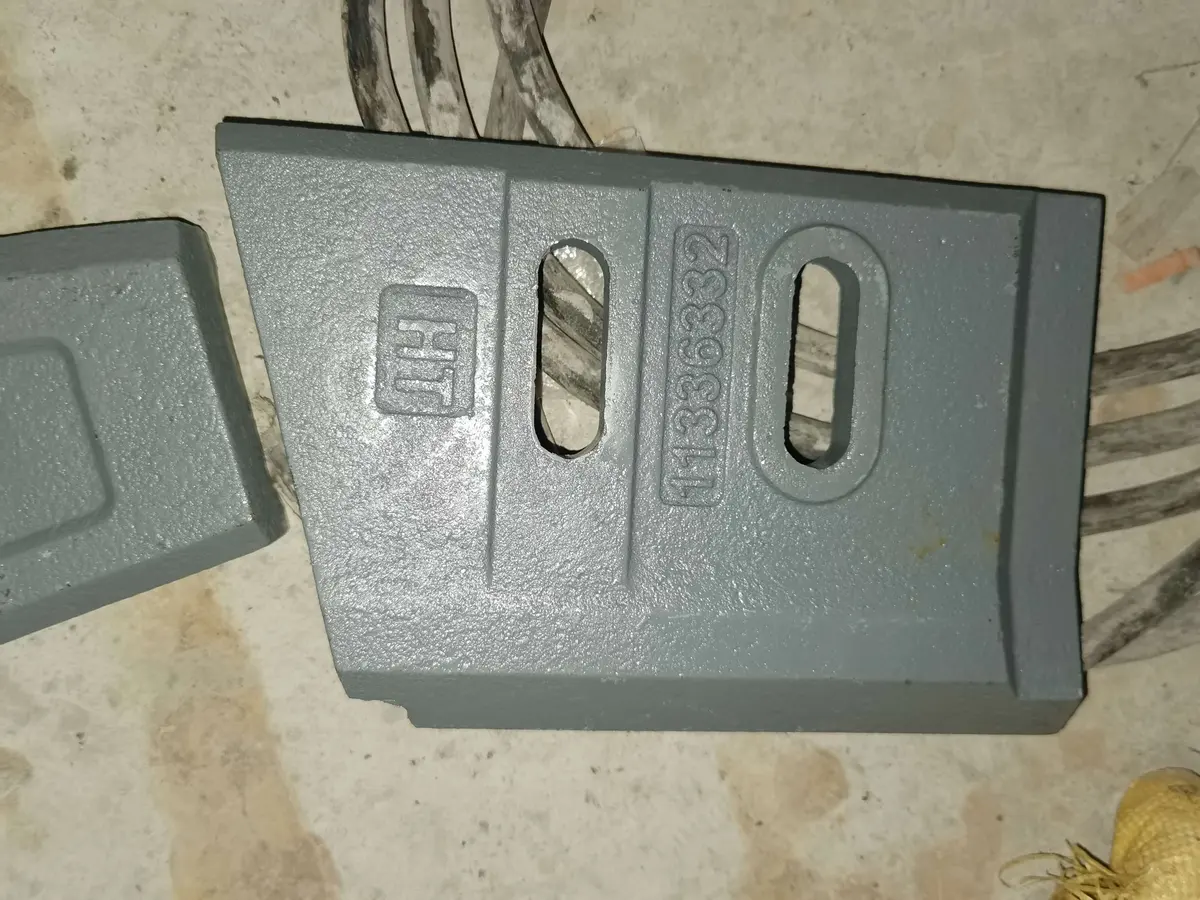

Fig. 4Concrete Mixing Plant Parts Matched Set Castings

What to Send With a Reorder

Photograph the part before it goes to scrap, cast marks and wear face both. A clear shot of a pattern number beats a plant model number every time: the model tells us which family to look in, the number tells us which part.
